A flickering headlight is a common issue many Royal Enfield riders experience—especially on older models like the Bullet and Classic 350, or bikes with aftermarket LED upgrades. Flickering lights not only reduce visibility but also indicate underlying electrical problems that can worsen if left unaddressed.
This guide explains the possible causes of headlight flicker, how to diagnose them, and the best solutions to restore stable and safe lighting performance on your Royal Enfield.
1. What Causes a Flickering Headlight on a Royal Enfield?
Headlight flickering usually points to one or more of the following issues:
A. Weak or Unstable Battery
- Low charge
- Aging battery
- Faulty cells
A weak battery struggles to supply steady voltage, causing the Royal Enfield headlight to dim or flicker.
B. Loose Wiring or Poor Connectors
- Loose headlight plug
- Corroded terminals
- Damaged wiring harness
Vibration from the single-cylinder engine can worsen loose connections over time.
C. Faulty Regulator/Rectifier (R/R Unit)
The R/R converts AC to DC and stabilizes voltage.
When it fails:
- Lights flicker
- Battery does not charge properly
- Voltage goes too high or too low
D. Bad Ground/Earth Connection
A poor ground point breaks the circuit intermittently, especially on rough roads.
E. Alternator/Stator Issues
On older carbureted Royal Enfields, lighting circuits sometimes run partially on AC from the alternator.
If the alternator coil is weak or damaged, flickering is more noticeable at idle.
F. Aftermarket LED Bulbs
Cheap LEDs can flicker due to:
- Poor driver circuitry
- Incompatible AC feed
- Insufficient voltage at idle
G. Switchgear Problems
Worn or dirty handlebar switches may interrupt power momentarily.
2. Step-by-Step Troubleshooting Guide
Follow these checks in order from easiest to most involved:
Step 1: Inspect the Headlight Connector
- Remove the headlight dome or bezel.
- Check the 3-pin connector for:
- Loose fit
- Dirt or corrosion
- Burnt or melted plastic
- Clean and secure all connections.
If the flicker disappears, the issue was a loose connector.
Step 2: Check Battery Health
Use a multimeter:
- Engine off: 12.4V–12.8V = good
- Engine idling: 13V+ (charging)
- Above 3000 rpm: should not exceed 14.5V
If voltage swings up and down, your battery or charging system needs attention.
Step 3: Examine the Ground (Earth) Wires
Locate:
- Main chassis ground
- Headlight ground wire
Steps:
- Remove bolt
- Sand the metal contact area
- Re-tighten securely
A clean ground often instantly solves flickering.
Step 4: Inspect the Regulator/Rectifier
Common symptoms of a faulty R/R:
- Headlight flickers at idle
- Battery drains quickly
- Motorcycle struggles to start
- Burning smell or overheating R/R unit
Test:
- If voltage exceeds 14.5V at high RPM → Overcharging
- If voltage stays below 13V even at high RPM → Undercharging
Replace it if values are abnormal.
Step 5: Check the Stator/Alternator Output
This is more common on older Royal Enfields with AC lighting circuits.
Symptoms:
- Flicker worse at low RPM
- Lights brighter only when revving
Solution:
- Test coil resistance
- Replace stator if output is weak

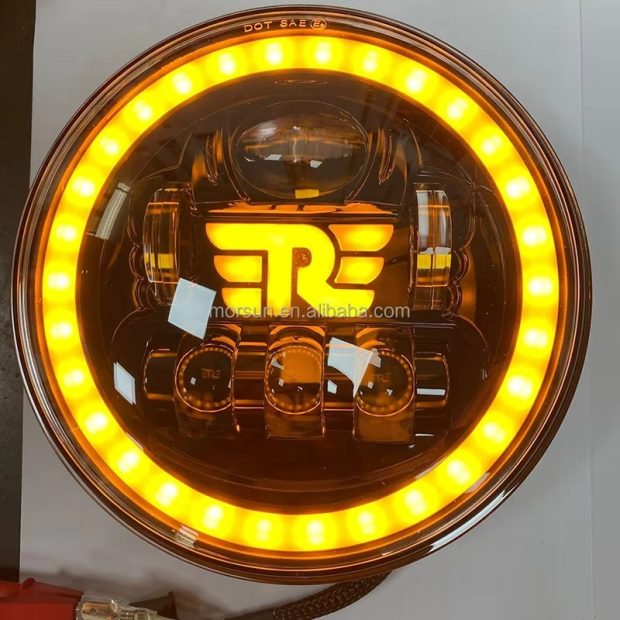

Step 6: Evaluate Your LED Bulb Upgrade
If you recently installed an LED:
- Make sure it is DC-compatible
- Use a quality brand with a stable driver
- Avoid extremely cheap e-commerce LEDs
On older models like BS3/BS4 Bullets or Classics, LED flicker is common unless the bike is converted to a full DC system.
Step 7: Inspect the Handlebar Switch
Open the high/low beam switch:
- Clean contacts
- Check for loose solder
- Spray contact cleaner
Worn-out switches cause intermittent power supply.
3. Quick Fixes You Can Try Immediately
- Tighten the battery terminals
- Replace old halogen bulbs
- Clean the headlight plug
- Install a DC conversion kit (older RE models)
- Upgrade the R/R unit to a more stable version
- Use a dedicated LED driver if using aftermarket LEDs
4. When to Visit a Mechanic
You should get professional help if:
- The flickering is severe
- The bike shows charging errors
- Voltage readings are abnormal
- Wires appear burnt
- You suspect a stator or R/R failure
A certified Royal Enfield technician can test:
- Continuity
- Load performance
- Complete charging circuit behavior
5. Preventing Future Flickering
- Avoid low-quality bulbs or wiring kits
- Regularly check the battery
- Clean ground points every 6–12 months
- Upgrade to a stable DC system for LED use
- Use proper vibration-resistant connectors
Good electrical maintenance ensures brighter, safer, and more reliable night riding.
Royal Enfield
A flickering Royal Enfield headlight is usually a sign of weak connections, poor grounding, charging system issues, or incompatible LED upgrades. By following a systematic troubleshooting approach—starting from connectors to the R/R and alternator—you can identify the root cause and restore smooth, stable lighting performance.
This improves not only night visibility and safety but also your motorcycle’s overall electrical reliability.
